Viewports

Managing Viewports

You can show a specific site anytime. Use the library panel in the following way:

• Select the name of the site with the left-mouse button. then right click to show the popup-menu, then select “View Site”.

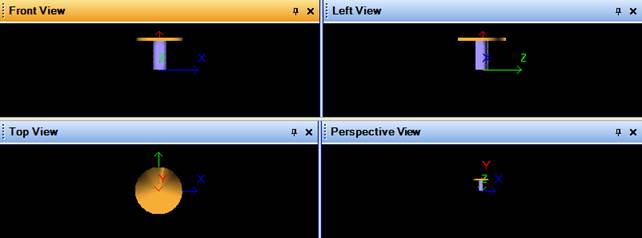

When a site is opened, a new window will appear containing the four possible camera orientations that show the 3-D background:

The Front View, Left View and Top View are 2-D views of the background. These three views do not show perspective. The final view does show the scene in 3-D perspective.

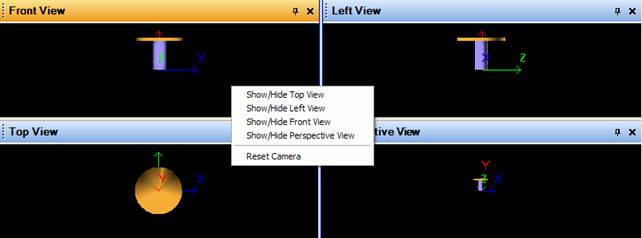

You can close a viewport by clicking on the ‘x’ button, You can restore the views with the popup-menu, by the right-clicking on any viewport:

These are the popup menu options:

• Show/Hide Top View
• Show/Hide Left View
• Show/Hide Front View
• Show/Hide Perspective View
• Reset Camera: This option is used to reset the camera of a particular viewport to the default position and orientation.
